Motor Cycle Anchor

[pluggy]

I am fitting block paving to replace the concrete that has started to crack and deteriorate. I also want to fit an anchor for my motorbike to help ensure, it stays mine. How can I adequately anchor into what will essentially be loose bricks ?

Ian

pluggy@blueyonder.co.uk

[84-1093879891]

The trick is to create an anchor block below the block paving.

I have a drawing somewhere for the anchor block we constructed for a client a few years back - I'll try to difg it out later. Basically, it's a generous portion of concrete set into the sub-base with a inverted "U" of galvanised or powder-coated projecting upwards, through the bedding layer and the block paving. You have to do a bit of fiddly cutting-in around the anchor point, but it's not all that tricky.

I have to go out now, but when I get back this evening, I'll root about in the cad archive to find the drawing which shows the idea quite clearly, I seem to recall.

[84-1093879891]

Sorry for the delay - had to attend a birthday party that went on for significantly longer than anticipated.

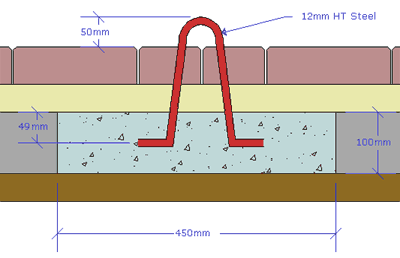

Anyway, here's a slightly tidied up screengrab from the drawing I mentioned...



...by using a block of concrete that's roughly 450mm x 450mm, you have a significant weight deterrent, but because that underlies the block paving, with is locked together (hopefully) by the jointing sand, you've more than doubled the pull resistance of the anchor.

[danensis]

Nothing there a good set of bolt croppers couldn't deal with <g>

[84-1093879891]

...but how do you carry the bolt croppers while riding away on the bike? ;)

[pluggy]

Thats Great, Many thanks Tony
